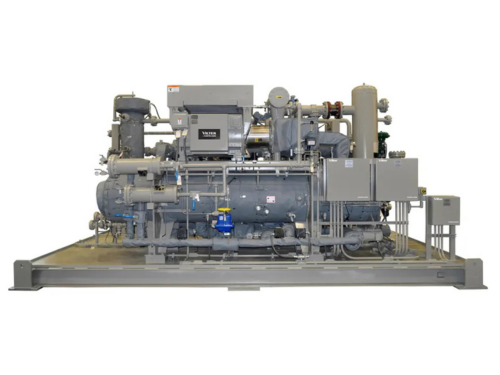

Vilter gas compressor

Vilter/Copeland gas compressors are high-performance systems designed for a wide range of industrial refrigeration and gas compression applications. Known for their advanced design, durability, and efficiency, Vilter/Copeland compressors offer innovative single-screw technology that ensures dependable operation with fewer moving parts. This means lower maintenance costs and extended service life.

These gas compressors are ideal for demanding environments, such as chemical processing, natural gas processing, and industrial refrigeration systems, where precise gas handling is essential. With a focus on energy efficiency, Vilter/Copeland compressors contribute to reducing operational costs while delivering consistent, high-capacity performance across various applications.

Vilter/Copeland

VilterCopeland logo

Koch Applied Solutions partners with Vilter/Copeland to provide gas compressors.

Vilter sets the industry standard for gas compression solutions in Renewable Natural Gas (RNG) including landfills, waste-water treatment, dairy, and food waste solutions. With proven single-screw compression technology and more than 150 years of industrial experience, Vilter compressors offer some of the highest levels of dependability in the market.

CHP Gas Boosting Packages

Gas turbine generators often need higher fuel pressures than is available on local gas lines, so fuel gas compressors are sometimes needed. Vilter/Copeland compressors are specifically designed to match the operating requirements of gas turbine generators so reliability and efficiency are maximized.

  • Features
  • Components
  • Benefits
  • More Details
  • Applications

Features

  • Standard sizes & footprints
  • Compact
  • Easy to maintain
  • Low CAPEX
  • Low OPEX
  • Indoor or outdoor setting
  • Down to minus -40 degrees Celsius outdoor setting without enclosure
  • 85 dba at 1 meter or lower without enclosure
  • Class 1 Div 2 or Div 1 options
  • High efficiency
  • Suction pressures up to 350 psi
  • Discharge pressures up to 900 psi
  • Air cooled or water cooled options
  • Enclosure options
  • Low oil Loss down to .01 ppm of mass flow
  • 100 to 2000 HP units
  • PM programs offered

Components

  • Compressor unit with the main motor
  • Reheat heat exchanger
  • Aftercooler
  • High-efficient suction scrubber
  • High-efficient discharge scrubber
  • AB control panel – Class 1 Div 2 without purging
  • Monitoring devices of temperature, pressure, and pressure drop
  • Fisher suction and discharge auto stop (option)
  • Fisher recycle valve (electric or pneumatic)
  • Rosemont instruments (option)
  • Winterization (option)

Benefits

  • Displacements from 310 to 2,048 CFM
  • Variable capacity control 10-100%
  • Variable volume ratios 1.2 – 7.0
  • Compression ratios 2 – 20
  • Electronic actuators are weatherproof and conform to Class 1, Group C&D
  • Division 2 classification
  • Balanced main rotor with no axial or radial loads
  • Parallex™ slide system for maximum operating efficiency
  • Low bearing loads – no hydrodynamic bearings
  • High suction pressure capability is standard
  • Clockwise rotation models available
  • Low noise levels
  • Low maintenance costs

More Details

Parallex™ Slide System

It’s the key to part load efficiencies far superior to twin screw compressors. Capacity and volume slides move independently of each other based on load, eliminating over or under-compression and saving motor horsepower.

Allen-Bradley Programmable Controller

The CompactLogix programmable controller with an A-B PanelView 1000 graphic display provides high performance in a small footprint for stand alone operation or for integrated system control.

Large Capacity Oil Filter

Filters will remove all particles, 25 microns or larger, from the oil before the compressor. Filter assemblies are equipped with transducers to measure pressure drop and shut-off valves for isolation and servicing.

Oil Cooling Options

  • Water cooled
  • Air cooled

Applications

  • Gas liquefaction
  • Vapor recovery
  • Flare gas recovery
  • Coal bed methane recovery
  • Field and fuel gas boosting
  • Wellhead recovery
  • Enhanced oil recovery
  • Landfill gas recovery
  • LNG boil-off
  • Gas gathering
  • BIO – gas
  • Digester
  • CO2
  • Nitrogen
  • Hydrogen
  • Refrigerant

Koch Applied Solutions is here to help you evaluate your project and equipment needs. Our team can also bring in construction and engineering resources to help see projects through to completion. Request a quote to get started today.
