Process Chillers, Mission Critical Chillers, Medical Chillers, & MRI Chillers
Heat from processes is absorbed by air cooled chillers and transferred to the air surrounding the chiller unit. Air cooled chillers are typically used when additional heat discharge is not a factor. In some applications the heat can be redirected and used for climate control to provide added cost savings.
The Koch Applied Solutions represents lines that encompass a variety of air cooled chillers including process chillers, mission critical chillers, medical chillers, and MRI chillers.
Request a quote to get started today.
Chillermen Air-Cooled Industrial Chillers
Chillermen offers a wide range of innovative and energy-efficient chiller solutions built for demanding applications. From cooling industrial processes to mission-critical data centers or HVAC systems in commercial buildings, Chillermen offers customized high-performance equipment engineered to meet your needs.
Product Specifications
Cooling Capacity: 1.5 to 100 tons (18,000 to 1,200,000 BTU/hr)
Voltage Options: 208–230V / 460V, 3-phase, 60 Hz
Pump Configurations:
- Single or dual pumps
- Flow rates up to 225 GPM at 30–35 PSI
Styles Available:
- Portable
- Stationary
- Reverse flow
- Continuous flow
Construction:
- Steel skid base for easy transport
- Pre-charged and factory-tested
- Single-point power connection
Controls: Proprietary Chillermen control system
Warranty: 3-year parts and labor warranty
Key Features
- Versatile Configurations: Available in portable, stationary, reverse flow, and continuous flow styles, accommodating a wide range of industrial applications.
- Robust Construction: Built with steel skid bases for easy transport, these chillers are pre-charged, factory-tested, and designed for durability.
- Advanced Control Systems: Equipped with proprietary Chillermen control systems, ensuring precise temperature regulation and system reliability.
- High-Efficiency Operation: Designed for energy-efficient performance, reducing operational costs while maintaining optimal cooling capacity.
- Comprehensive Warranty: Backed by a 3-year parts and labor warranty, demonstrating Chillermen’s commitment to quality and customer satisfaction.
Product Specifications
Cooling Capacity: 150 to 400 tons
Power Supply Options: 208V or 460V, 3-phase
Compressor Configurations: Tandem or trio scroll compressors
Efficiency: Up to 40% more efficient than air-cooled systems
Footprint: Approximately 40% smaller than comparable air-cooled units
Ambient Performance: Maintains 100% capacity at any ambient temperature
Construction Features:
- NEMA 4 control panel
- Flanged supply/return connections
- Factory-installed strainer
- Brazed plate evaporator
- Electronic expansion valves
- Dual replaceable core filter driers
- Redundant refrigeration circuits
- ECM condenser fans with quiet blades
- Low clog spray system
- Copper condenser coil
- Stainless steel condenser basin
Control Systems:
- Proprietary in-house designed software
- PID temperature control
- High/low pressure switches
- Fluid flow switches
- Current transmitters
- Equal run time sequencers (where applicable)
Certifications:
- UL listed and approved system parts
- Conforms with California Title 24 and CalGreen requirements
Warranty: 3-year parts and labor warranty
Key Features
- Plug-and-Play Operation: Single-point power and water connections with systems tested, charged, and pre-programmed for immediate use.
- Enhanced Serviceability: Designed for ease of maintenance with safety systems that maximize equipment lifespan and minimize downtime.
- Advanced Control Paradigm: In-house engineered control software ensures optimal temperature accuracy and precision.
- Robust Construction: Heavy-duty steel skid construction with rotating lifting lugs for accessible rigging.
- Environmental Compliance: Meets stringent environmental standards, including California Title 24 and CalGreen.

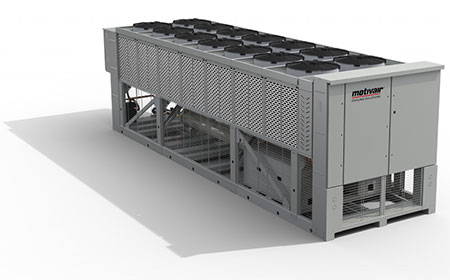

Motivair Air Cooled Industrial Chillers
Motivair offers air cooled industrial chillers designed for industries and operations that rely on dependable cooling for critical operations and facilities.
- 10 – 450 tons capacity range
- Customization options allow equipment to meet project specific design criteria ensuring reliable options and lowest total cost of ownership
- Factory assurance quality testing prior to shipment for every chiller
- Centurion Monitoring System provides optional 24×7 global remote monitoring and support
- Key Features
- Techical Specs
- Custom Options
- Downloads
Key Features
- Enterprise grade design
- Mission critical design for the world’s most demanding facilities
- Rapid restart feature
Techical Specs
- Scroll, screw & turbocor compressor options
- 10 – 450 tons capacities
- Shell & tube and braised plate evaporator options
- Air-cooled condenser with low noise, variable speed TEAO fan motors
- High powered PLC control system with remote monitoring capabilities
- Integrated storage tank option
- Integrated primary pump(s) option
- Refrigerant options: R-134A, R-410A, R-1234ZE, R-513A
- Power: 230/3/60, 460/3/60, 380/3/50, 575/3/60
- ETL, CSA, CE Certified
Custom Options
- Stainless steel enclosure
- Low noise option
Smardt Air Cooled Industrial Chillers
Smardt air cooled chillers lead the market with the:
- Smallest footprint
- Quietest operation (in both standard and low-noise configurations)
- Highest air-cooled operating efficiencies
Smardt air cooled chiller condenser coils use a V configuration to optimize heat rejection and footprint. The coils are baked and double-coated as standard with sealed edges as standard, to extend the coil’s physical protection from environmental corrosion towards the inherent long life of the other chiller components.
In many applications, remote location of the condenser may be preferred. Smardt air chillers are available as a full package if desired, or on a condenser-less basis. Either configuration has full warranty applicable to all components supplied and commissioned.
Highlights
- Air-cooled chiller range – 60 TR to 450 TR
- Adaptable by design – a base range with options to suit any air cooled application
- Designed for ease of maintenance and serviceability
- Advanced corrosion protection on critical operating surface areas
- Accurately designed for trouble-free and sustained operation across the entire chiller load range
- North American manufactured, tested and pre-commissioned prior to delivery to ensure trouble-free commissioning and startup on every project
Energy consumption can be dramatically reduced with the use of evaporative pre-cooling to lower the incident air temperature on the coil. This can significantly reduce energy consumption, effectively shifting heat rejection from ambient dry bulb (95 deg F or 35 deg C) towards ambient wet bulb (say 75 deg F or 24 deg C).
Added savings of over 30% compared with normal Smardt air-cooled operation have been demonstrated in warmer, dryer climates.
